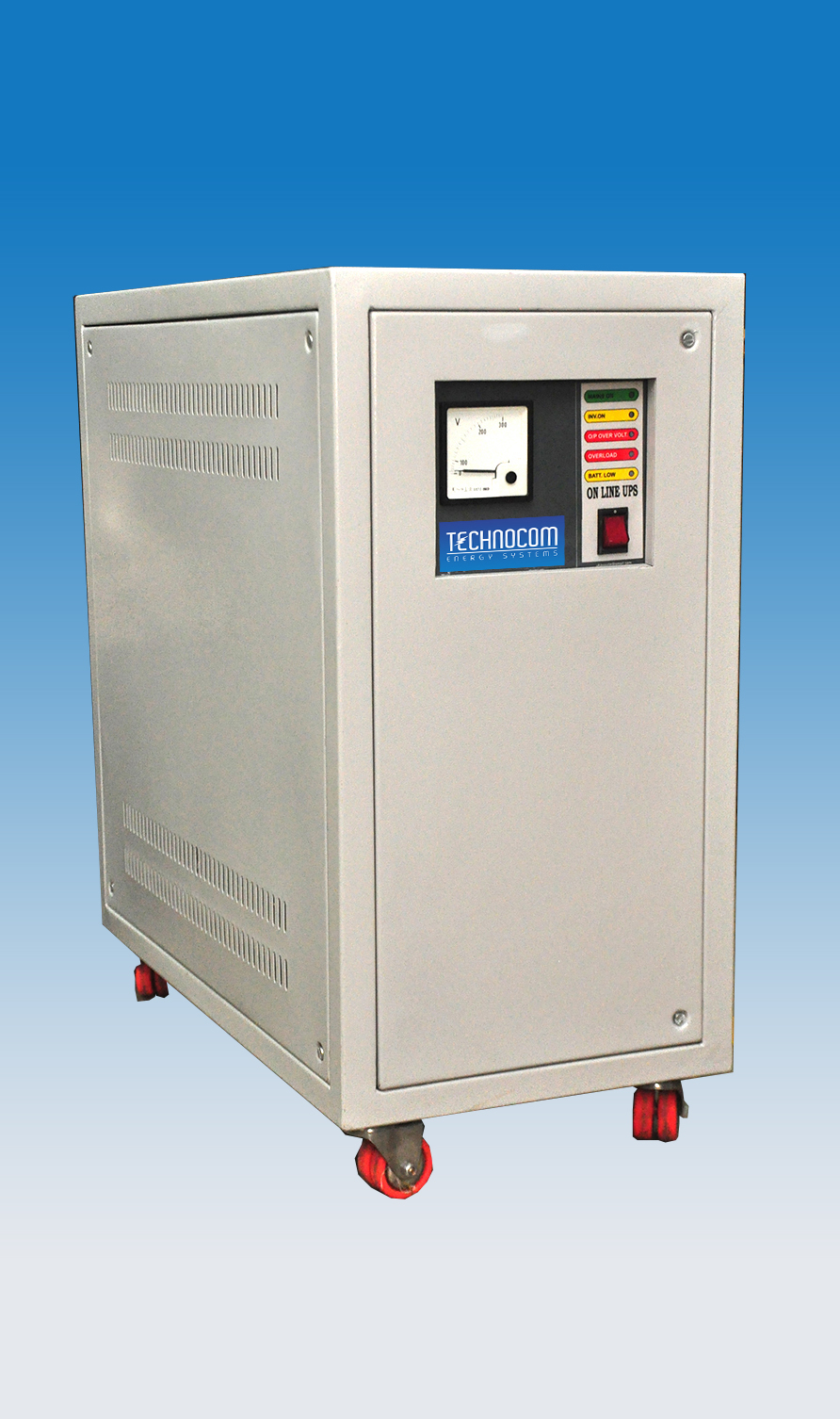

1Phase In 1Phase Out

Standard Rating
INPUT
Voltage 230VAC 1 Ph.
Operating Range 170-265VAC
Frequency 50Hz +/- 5%
Power Factor > .8
OUTPUT
Ratings 1 to 10kVA
Voltage 230VAC
Power Factor .8 lag to unity
Crest Factor 03:01
Frequency 50Hz +/- .1%
Harmonic Distortion THD < 3%
PROTECTIONS
RECTIFIER
I/P AC under & over Voltage
DC low & high Voltage
Battery Charging Over Current
INVERTER
O/P under & over Voltage
O/P overload & short circuit
Over temperature
ALARMS
Rectifier Trip, Overload, Mains Fail, Batt. low prealarm, System Trip
METERING
Multifunction LCD Display for following Parameters Input Votage & Current, Input Frequency, Batt. Voltage, Batt. Currents, O/P Voltage, O/P Current, O/P Frequency

Features

  1. 1. Wide range of Input Supply Voltage to suit Indian conditions.
  2. 2. Custom built design is possible as per User specifications.
  3. 3. Latest Technology.
  4. 4. Compact size.
  5. 5. True ON-LINE Design,
  6. 6. High Performance; High Efficiency with near unity power factor.
  7. 7. Excellent Voltage Regulation and Transient Response.
  8. 8. Comprehensive and User friendly LCD Display with Mimic.
  9. 9. Support all types of Battery Systems.
  10. 10. Extended Run Time Facility.
  11. 11. Diesel Gen set Compatible.
  12. 12. Optional Intelligent Computer Interface.
  13. 13. Optional Auto By-pass facility.
