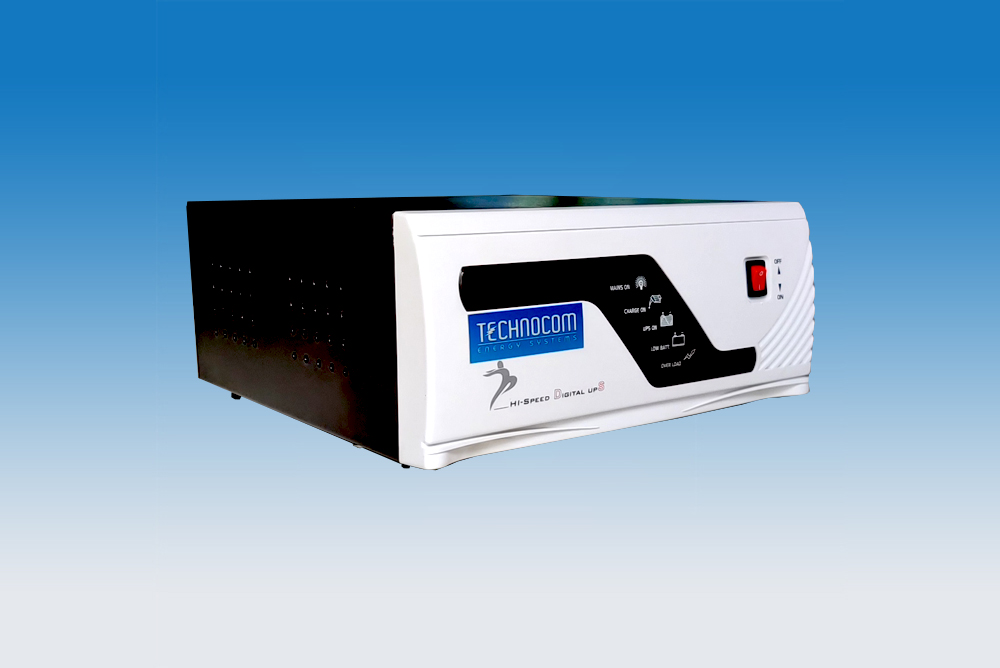

Inverter / Home-UPS

Inverter


  1. 1. Sine Wave Inverter
  2. 2. Capacity - 1000 VA,1600VA/2000VA/2500VA/3500VA/5kVA
  3. 3. Supports single Battery/2Battery/3Battery/4Battery
  4. 4. Intelligent Home UPS with 16 bit Microprocessor
  5. 5. Safe for sensitive appliances with Sine wave out-put
  6. 6. LED Display
  7. 7. MCB for protection from output overload.
  8. 8. Noiseless Operations with the help of low harmonic distortion.
  9. 9. Overload restart within its capacity with audio alarm & then trip
  10. 10. Multistage Charger improves Battery efficiency as well as Battery life.
  11. 11. Supports a wide Battery range, i.e. Flat Plate, Tubular & VRLA (SMF)
  12. 12. Technology that suites Indian Environment with best in class specification.

Protections

  1. 1. Over Load/Short Circuit Protection: If the UPS is excessively Over loaded in UPS Mode or encounters a Short Circuit, it will go into Protection Mode. The Output will Shut Down in this case.
  2. 2. Battery Deep Discharge/Over Charge Protection: The UPS has In-built Electronic Protection Circuit that protects the Batteries from getting Deep Discharged or Over Charged.
Standard Rating
PHYSICAL
Cable Entry Back Side Bottom
Colour Black / Semens gray
ENVIRONMENT
Operating Temperature 0 to 45 Deg. C. (0 to 50 °C)
Storage -10 to 70 Deg. C.
Humidity up to 95% RH. (Non - condensing)
Cooling Forced Air Cooling
Noise < 65 dB
Altitude <1000 mtr. Above mean sea level.

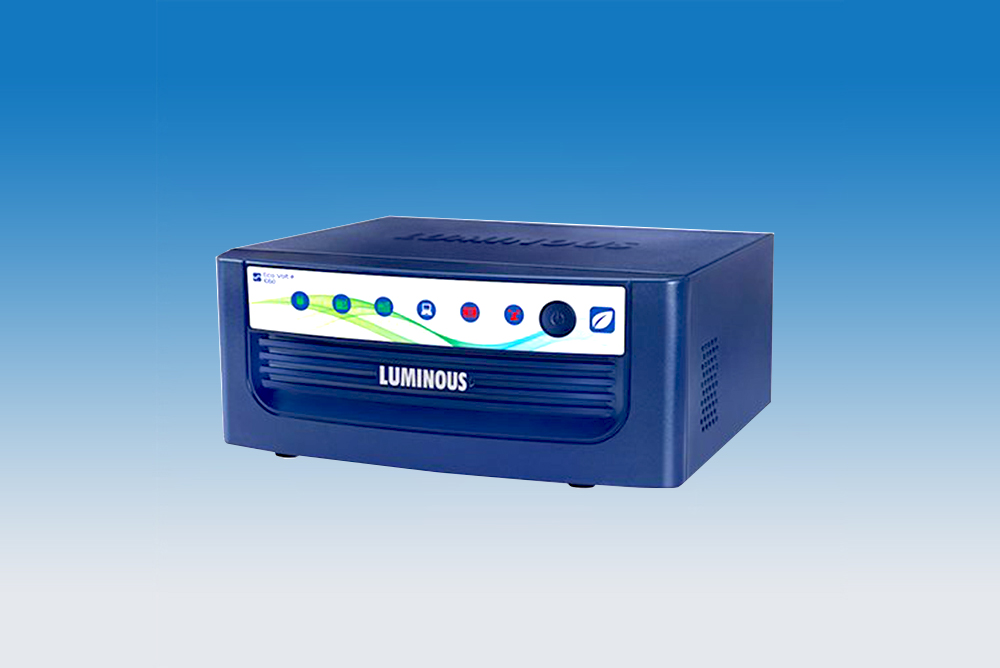

Luminous Eco Volt Plus 1050 Home UPS


Product Details:
Model Name/Number Eco Volt Plus 1050
Brand Luminous
Usage/Application Home
Capacity 900 VA
Wave Type Sine Wave
Warranty 24 Months
Weight 9.8 Kg
Output Power 756W
Dimensions 29.2 x 27.5 x 12 cm
Max Charging Current 17A


Other Details


  1. 1. Supports single battery
  2. 2. Safe for sensitive appliances
  3. 3. Three Stage Charging for safe & efficient charging and longer battery life. 4-step battery type selection.
  4. 4. Equipped with overload protection with auto reset
  5. 5. Intelligent water level indicator to help track battery water level without any hassle.
  6. 6. Special designed for Indian power conditions with rugged technology design for high performance and longer back-up time.
  7. 7. Supports the Eco Mode (180V to 260V) for safety of sensitive appliances & UPS mode (extended voltage range) for reduced battery usage.
  8. 8. Noiseless Operations with the help of low harmonic distortion
  9. 9. Supports wide battery range, i.e. Flat Plate, Tubular & VRLA (SMF)


Features:


  1. 1. ABCC technology
  2. 2. High efficiency

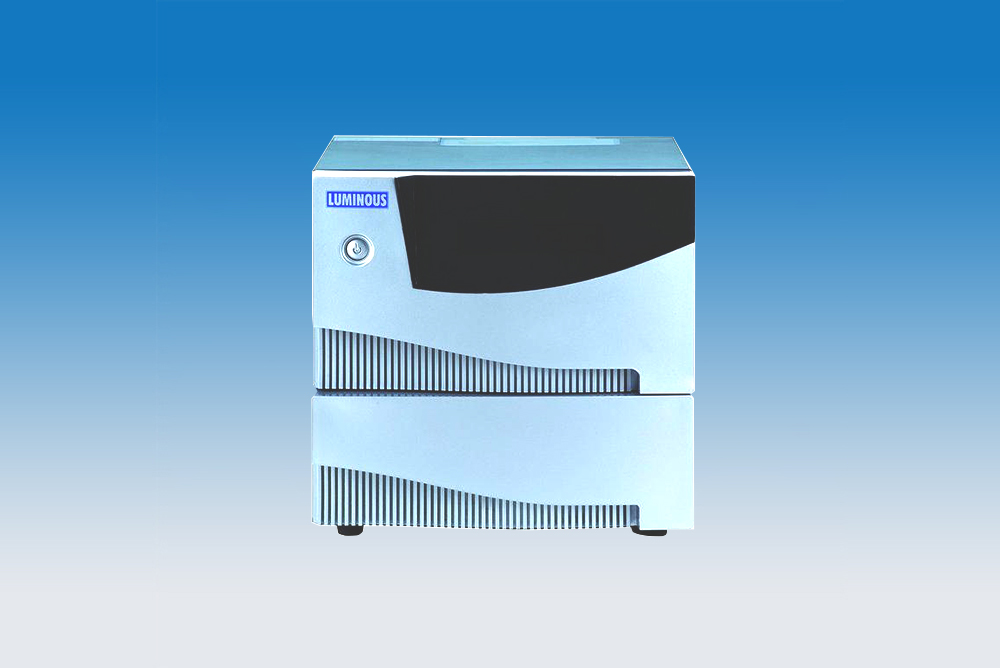

Luminous Cruze Home UPS


Product Details:
Model Name/Number Cruze
Brand Luminous
Usage/Application Home
Capacity 2 kVA
Phase Single
Wave Type Sine Wave
Warranty 24 Months
Dimension 28 x 30.5 x 28 cm
Output Power 1680W
Weight 22.25 kg
Max Charging Current 21A


Other Details


  1. 1. Supports single battery
  2. 2. Safe for sensitive appliances
  3. 3. Cruze HKVA Inverters can run heavy loads like AC, Geyser, Petrol Pumps, Photocopiers, Dental Chairs etc., depending on their capacity (please check the inverter capacity and your power requirement)
  4. 4. Auto over-load handling capacity
  5. 5. Offers high quality and reliable power back-up solution for office and homes
  6. 6. MCB for protection from Input mains
  7. 7. Bypass switch for supplying output directly from grid in case of Home UPS fault.
  8. 8. Noiseless Operations with the help of low harmonic distortion
  9. 9. Intuitive Display to easily understand status of mains availability, battery status, etc.
  10. 10. Comprehensive protection against short-circuit, reverse polarity, battery over-charge, deep-discharge etc
  11. 11. Adaptive Battery charging control system technology (ABCC) ensures faster battery charging and enhances battery life by around 70%
  12. 12. Supports a wide battery range, i.e. Flat Plate, Tubular & VRLA (SMF)


Features:


  1. 1. Installation and maintenance friendly
